YAMAHA FEEDER CL44MM Accessories

No. Part No. Part Name Q'ty Remarks

KW1-M452U-000 SUB LEVER ASSY 1 AS-A24-1116

KW1-M6510-000 BODY ASSY 1 AS-A44-1101

1 SPRING HOOK PIN 1 CTF-A08-211-B-2

2 RACKING LEVER GUID PIN 1 CTF-A12-706

3 KW1-M452D-000 COIL SPRING 1 CTF-M08-511-1

4 KW1-M221F-100 STOPPER PIN 1 CTF-M12-313

5 K87-M211B-000 BACK STOPPER AXIS 1 CTF-M12-315

6 KW1-M552R-000 LEVER METAL 1 FTA-A32-1108

7 RACKING POLE 1 FTA-A08-1111

8 KW1-M4521-000 METAL 1 FTA-A24-1103

9 KW1-M4523-000 SPROCKET 1 FTA-A24-1104

10 RACKING LEVER 1 FTA-A24-1105

11 KW1-M4524-000 RATCHET 1FTA-A24-1107

12 KW1-M452H-000 THRUST WASHER 1 FTA-A24-1109

13 POLE AXIS 1 FTA-A24-1110

14 KW1-M451H-000 BACK STOPPER 1 FTA-A24-1114

15 K87-M229K-00X SPRING 1FTA-A24-1168-430

16 SUB LEVER 1 FTA-A24-1116

17 KW1-M4577-000 MAIN ARM 1 FTA-A24-1117

18 STUD 1 FTA-A24-1118

19 KW1-M6511-000 BODY 1 FTA-A44-1101

20 KW1-M552F-000 BEARING 1 MB0808DU

21 K87-M111P-000 SCREW, FLAT HEAD + 6 P2MK-3

22 K87-M111V-000 SCREW SET 2 4MY-5-F

23 K87-M55BL-000 U NAT 1 4MH-U

24 K87-M1115-000 CIRCULAR RIVET 1 2-10

25 K87-M11B9-000 CIRCLIP E 1 E-24

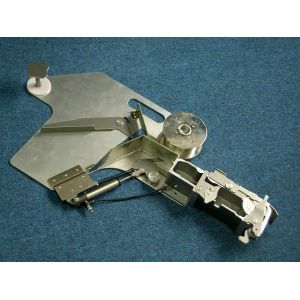

KW1-M6500-015 feeder YAMAHA CL44mm FEEDER
